Home / Products / Network Cabinets / Glass Door Free Standing Network Cabinets

Glass Door Free Standing Network Cabinets Custom

Professional Production Rack, Server Rack And Other Accessories

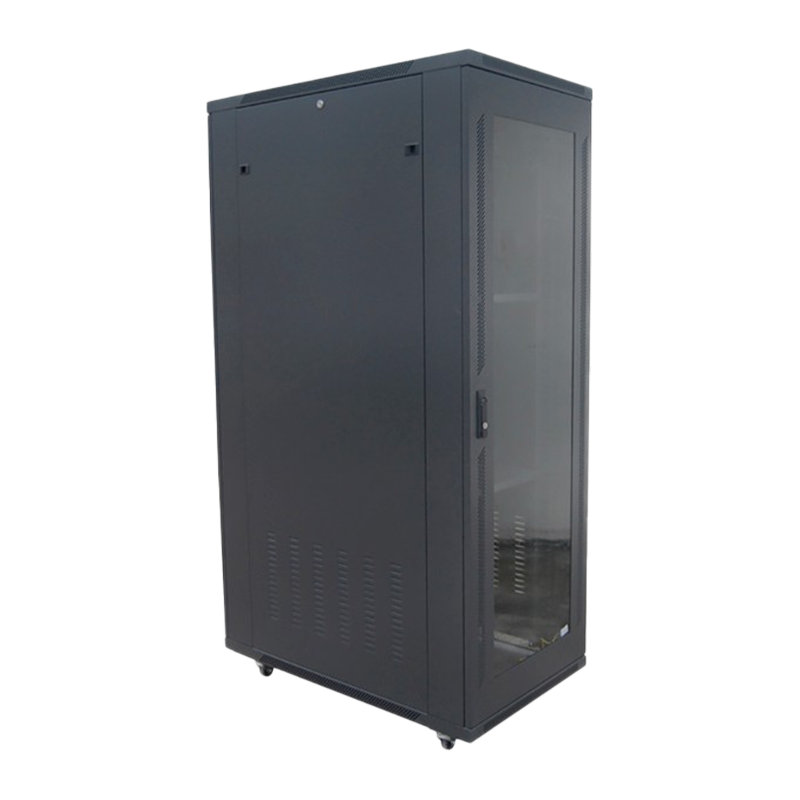

Glass Door Free Standing Network Cabinets

Standard:

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/3047.2-92 standard

  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets
  • Glass Door Free Standing Network Cabinets

Advantages

Feature:
1. Modern stylish appearance and elegant exterior.
2. Firm steel construction and precise measurement for 19” standard.
3. Each cabinet fit out with fans in the top.4 fans available for 600mm depth cabinet,6 fans for 800mm depth and 8 fans for 1000mm depth cabinet.

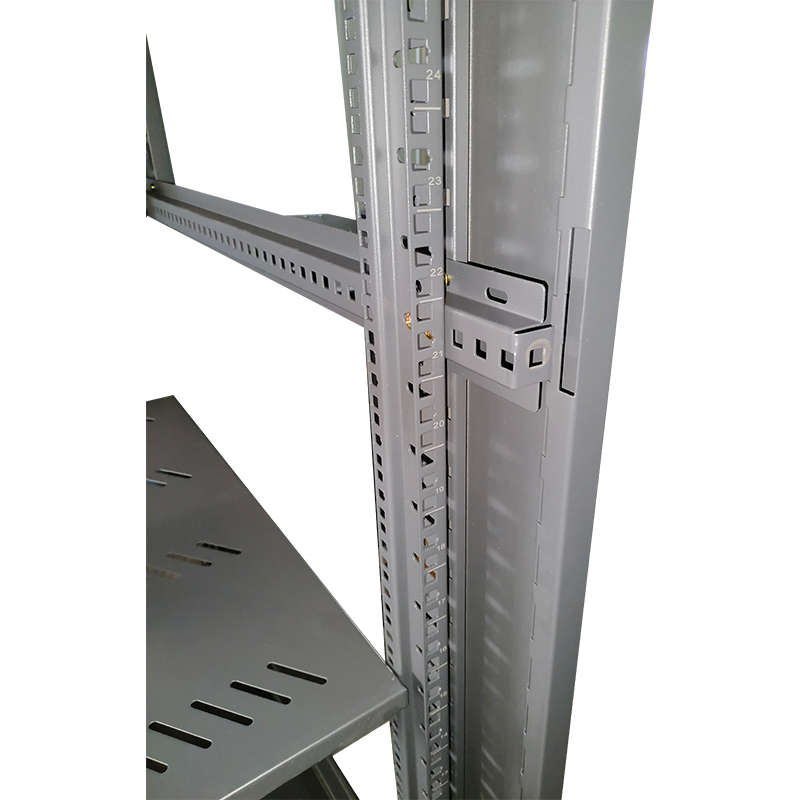

4.19” standard mounting post, the mounting depth is adjustable.
5. Front door come with rotatable lock, and tempered glass which meet the standard of CCC.
6. Two side panels using quickly release sliding latches, easy to knockdown.
7. Also each side panel and rear door with lock and ventilation for security and heat-cooling.

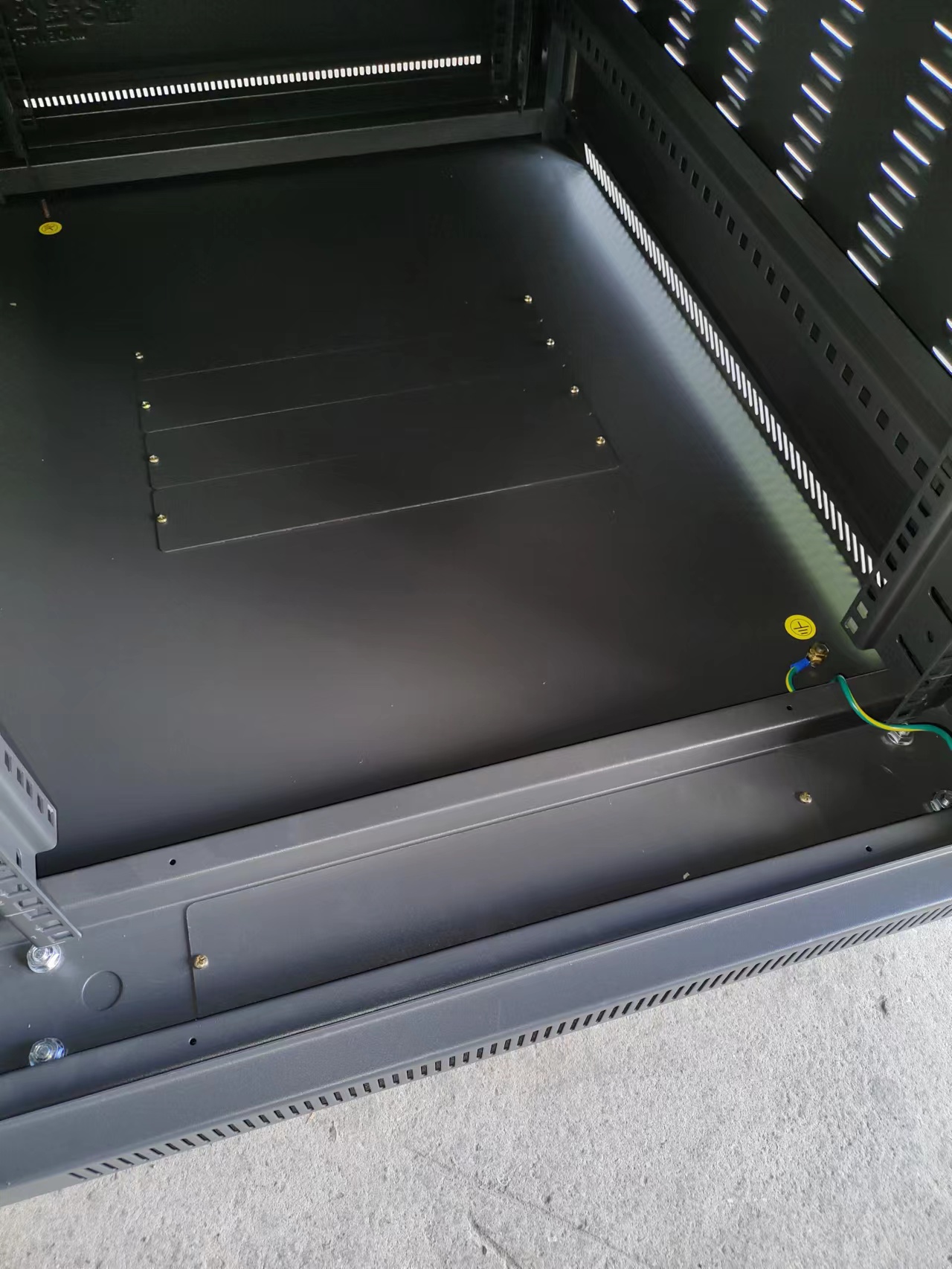

8. Large adjustable cable entry in Base, easy for cable entry.
9. Adjustable feet and universal castors in the bottom.
9. Shelf, cable manager, PDU and other accessories available on your options.
10. Available in heights ranging from 16u to 47u with three standard depth of 600mm,800mm,1000mm.
11. Flat package, easy to carry and saving space.
Loading Capacity
Static loading:1000kg

CUSTOMIZATION

We have a strong R&D team, and we can develop and produce Glass Door Free Standing Network Cabinets products according to the drawings or samples the customers offered.

COST

We have our own manufacturing plant, factory direct sales Glass Door Free Standing Network Cabinets, high quality and low price.

QUALITY

We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.

MULTIFORMITY

The company has advanced production equipment and strong research and development capabilities.

CAPACITY

We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.

SERVICE

Based on high-grade and high-end markets, our Glass Door Free Standing Network Cabinets products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters

 Main material:

Part

Thickness of Steel

Surface finish

Frame

SPCC cold rolled steel 1.5mm

Degreasing,pickling,phosphoric,
dip-coat,primed,power coat

Mounting post

SPCC cold rolled steel 2.0mm

Degreasing,pickling,phosphoric,
dip-coat,primed,power coat

Front door

SPCC cold rolled steel 1.2mm

Degreasing,pickling,phosphoric,
dip-coat,primed,power coat

Others

SPCC cold rolled steel 1.0mm

Degreasing,pickling,phosphoric,
dip-coat,primed,power coat



Specification Chart (mm):

Item   No.   Type Capacity Size(width*depth*height)
CYFL-04-30W8D8 series with depth of 800mm 30u 800*800*1507
CYFL-04-33W8D8 33u 800*800*1640
CYFL-04-37W8D8 37u 800*800*1818
CYFL-04-40W8D8 40u 800*800*1951
CYFL-04-42W8D8 42u 800*800*2040
CYFL-04-46W8D8 46u 800*800*2218
CYFL-04-40W8D10 Series with depth of 1000mm 40u 800*1000*1951
CYFL-04-42W8D10 42u 800*1000*2040
CYFL-04-46W8D10 46u 800*1000*2218

color:

Description  RAL9004 black
RAL7035 gray
RAL9010 white

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd.

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd is China custom Glass Door Free Standing Network Cabinets suppliers and OEM/ODM Glass Door Free Standing Network Cabinets company. It is located in Xiangshan County, a beautiful peninsula in Zhejiang Province, the transportation is very convenient.

The company occupies a land area of 10000 square meters and has advanced production equipment such as hydraulic swing beam shears, hydraulic press brakes, laser cutting machine and others. The company has developed a specialized cabinet manufacturing base combining new product development, automatic production lines and powerful sales network.

The company has strong technical force and complete machinery. The quality of finished products and after-sales service is managed in compliance with ISO9000 international standard, quality service and unified service are provided for clients. At the same time. The company attaches importance to technical innovation and new product development. As a result, the product quality has continued to improve and products come with a wider range of specification.

The company shall follow its business philosophy of good quality, favorable price and attentive service. Here the whole company staff would like to extend their heartfelt thanks to all customers and others who have cared for and supported us over the years. We sincerely invite you to visit our company and give advice on our business.

Honor

The Honor
We Have Received.

Based on the development concept of "based on domestic and facing the world", the company keeps pace with the times, and is willing to join hands with domestic and foreign customers to develop together and create a better future.

NEXT

FAQ

  • How soon can we get a reply after we send you an inquiry?

    On weekdays, we will reply to you within 12 hours after receiving the inquiry.

  • Are you a direct manufacturer or a trading company?

    Manufacturers provide direct supply, provide preferential prices, high-quality and fast delivery, and provide high-quality service.

  • What products can you offer?

    We mainly produce network cabinet, server cabinet, rack and cabinet accessories.

  • Can you make customized products?

    Yes, we have a strong R & D team, which can develop and produce products according to the drawings or samples provided by customers.
