Home / Products / Wall Mount Cabinet / Double Section Wall Mount Cabinet WIth Removable Panel

Double Section Wall Mount Cabinet WIth Removable Panel Custom

Professional Production Rack, Server Rack And Other Accessories

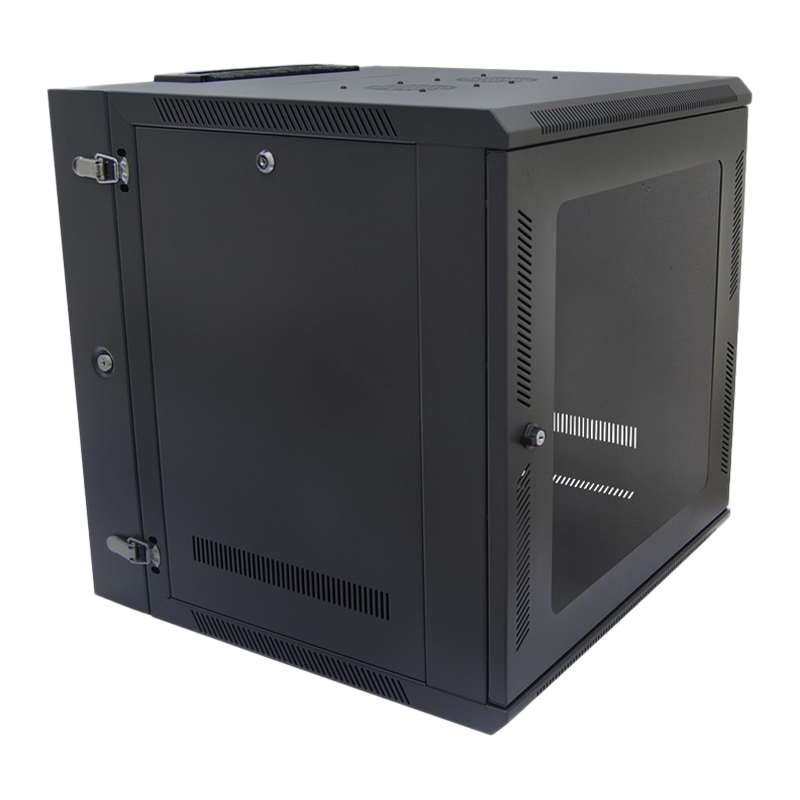

Double Section Wall Mount Cabinet WIth Removable Panel

Standard:
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41494,PART7,GB/3047.2-92

  • Double Section Wall Mount Cabinet WIth Removable Panel
  • Double Section Wall Mount Cabinet WIth Removable Panel
  • Double Section Wall Mount Cabinet WIth Removable Panel
  • Double Section Wall Mount Cabinet WIth Removable Panel
  • Double Section Wall Mount Cabinet WIth Removable Panel
  • Double Section Wall Mount Cabinet WIth Removable Panel
  • Double Section Wall Mount Cabinet WIth Removable Panel
  • Double Section Wall Mount Cabinet WIth Removable Panel

Advantages

Feature:
1. Frame structure, double section wall mount cabinet.
2. Standard cabinet equipped with adjustable 19” mounting posts.
3. Removable side doors and tempered glass front door, safe and convenient with lock.
4. Cable entry on both of the top cover and bottom plate.
5. Fan hole available on the top cover.
6. Cabinet can be fastened directly and conveniently onto the wall just with screws.
7. Height from 6U-21U, they are optional.
8. Flat package, easy to carry and saving space.

CUSTOMIZATION

We have a strong R&D team, and we can develop and produce Double Section Wall Mount Cabinet WIth Removable Panel products according to the drawings or samples the customers offered.

COST

We have our own manufacturing plant, factory direct sales Double Section Wall Mount Cabinet WIth Removable Panel, high quality and low price.

QUALITY

We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.

MULTIFORMITY

The company has advanced production equipment and strong research and development capabilities.

CAPACITY

We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.

SERVICE

Based on high-grade and high-end markets, our Double Section Wall Mount Cabinet WIth Removable Panel products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters



 Main material:

Part

Thickness of Steel

Surface finish

Frame

SPCC cold rolled steel 1.2mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Mounting post

SPCC cold rolled steel 1.5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Rear plate

SPCC cold rolled steel 1.2mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Others

SPCC cold rolled steel 1.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat


Main Specification (mm):

Item No.

U

width*depth*height

CYWL-04-06W6D6

6U

600*600*360

CYWL-04-09W6D6

9U

600*600*493

CYWL-04-12W6D6

12U

600*600*626

CYWL-04-15W6D6

15U

600*600*760

CYWL-04-18W6D6

18U

600*600*894

CYWL-04-21W6D6

21U

600*600*1026



Color:

Description  RAL9004 black
RAL7035 gray
RAL9010 white

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd.

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd is China custom Double Section Wall Mount Cabinet WIth Removable Panel suppliers and OEM/ODM Double Section Wall Mount Cabinet WIth Removable Panel company. It is located in Xiangshan County, a beautiful peninsula in Zhejiang Province, the transportation is very convenient.

The company occupies a land area of 10000 square meters and has advanced production equipment such as hydraulic swing beam shears, hydraulic press brakes, laser cutting machine and others. The company has developed a specialized cabinet manufacturing base combining new product development, automatic production lines and powerful sales network.

The company has strong technical force and complete machinery. The quality of finished products and after-sales service is managed in compliance with ISO9000 international standard, quality service and unified service are provided for clients. At the same time. The company attaches importance to technical innovation and new product development. As a result, the product quality has continued to improve and products come with a wider range of specification.

The company shall follow its business philosophy of good quality, favorable price and attentive service. Here the whole company staff would like to extend their heartfelt thanks to all customers and others who have cared for and supported us over the years. We sincerely invite you to visit our company and give advice on our business.

Honor

The Honor
We Have Received.

Based on the development concept of "based on domestic and facing the world", the company keeps pace with the times, and is willing to join hands with domestic and foreign customers to develop together and create a better future.

NEXT

FAQ

  • How soon can we get a reply after we send you an inquiry?

    On weekdays, we will reply to you within 12 hours after receiving the inquiry.

  • Are you a direct manufacturer or a trading company?

    Manufacturers provide direct supply, provide preferential prices, high-quality and fast delivery, and provide high-quality service.

  • What products can you offer?

    We mainly produce network cabinet, server cabinet, rack and cabinet accessories.

  • Can you make customized products?

    Yes, we have a strong R & D team, which can develop and produce products according to the drawings or samples provided by customers.
