Welded Wall Mount Cabinet With Acrylic Front Door Custom
Professional Production Rack, Server Rack And Other Accessories
Product parameters:
● Sturdy welded frame structure. Assembly.
● All Mounting rails are marked with an RU space index for easy alignment.
● Adjustable front and rear sets of cage nut 19” mounting rails.

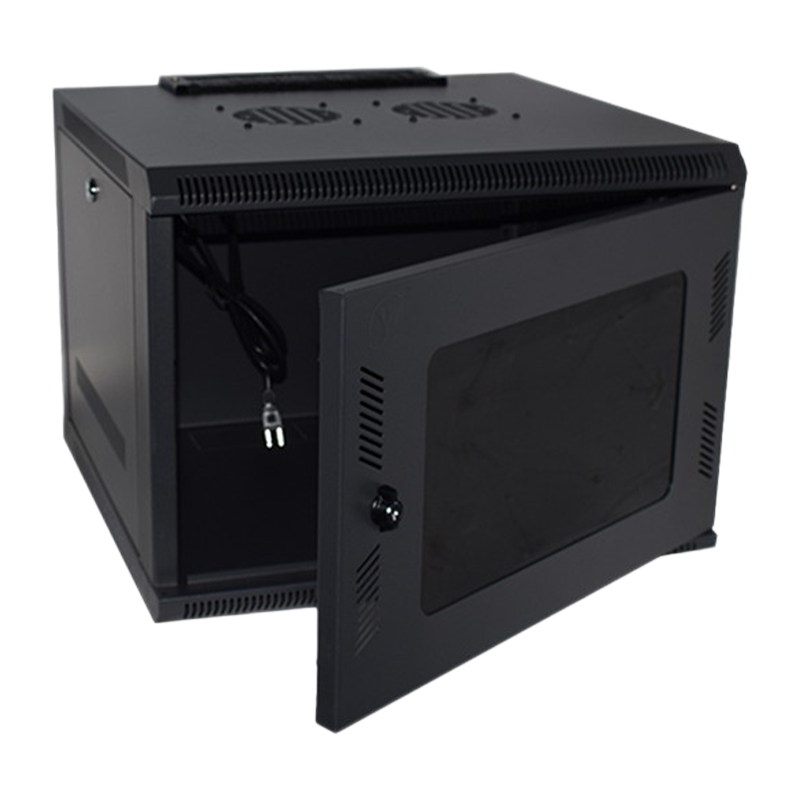

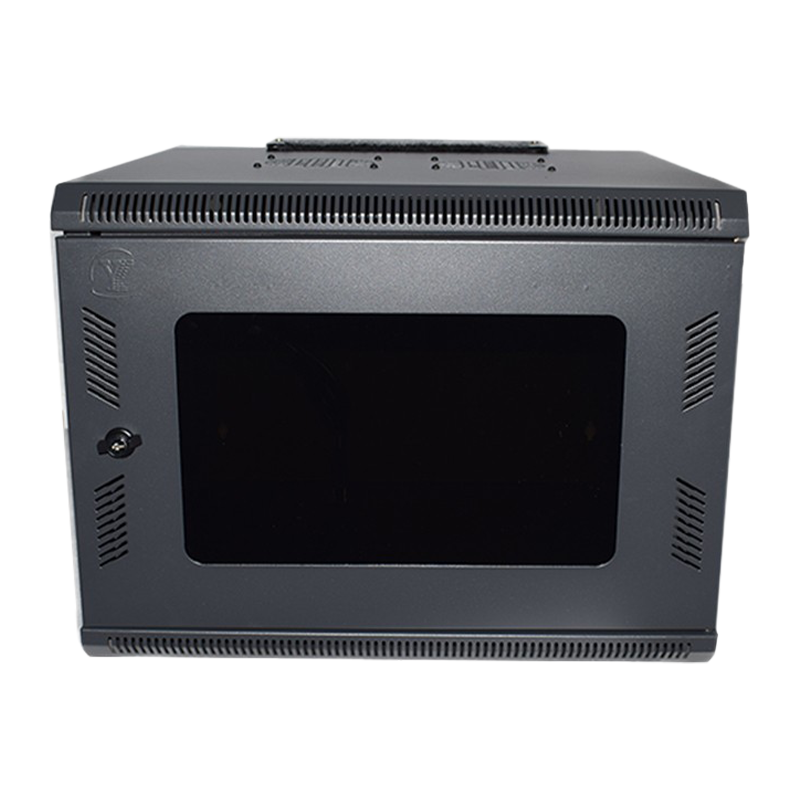

● Brown acrylic front door with lock (Reversible for left or right-side opening)
● Includes cage nuts, #12-24 mounting screws and washers (12 of each).
● Removable side panels with key lock for secure and easy access.
● Pre-installed110VAV 80CFM UL approved fan keeps equipment running cooling
● Cable entry on both of the top cover and bottom plate.Top cable entry with brush,It is energy saving and dust-proof.
We have a strong R&D team, and we can develop and produce Welded Wall Mount Cabinet With Acrylic Front Door products according to the drawings or samples the customers offered.
We have our own manufacturing plant, factory direct sales Welded Wall Mount Cabinet With Acrylic Front Door, high quality and low price.
We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.
The company has advanced production equipment and strong research and development capabilities.
We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.
Based on high-grade and high-end markets, our Welded Wall Mount Cabinet With Acrylic Front Door products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.
Part |
Thickness of Steel |
Surface finish |
Frame |
SPCC cold rolled steel 1.2mm |
Degreasing, pickling, phosphoric, dip-coat primed, powder coat |
Mounting post |
SPCC cold rolled steel 1.5mm |
Degreasing, pickling, phosphoric, dip-coat primed, powder coat |
Rear plate |
SPCC cold rolled steel 1.2mm |
Degreasing, pickling, phosphoric, dip-coat primed, powder coat |
Others |
SPCC cold rolled steel 1.0mm |
Degreasing, pickling, phosphoric, dip-coat primed, powder coat |
Item No. |
U |
width*depth*height |
CYWL-11-07W5D5 |
7U |
530*508*398 |
CYWL-11-09W5D5 |
9U |
530*508*480 |
CYWL-11-11W5D5 |
11U |
530*508*577 |
CYWL-11-14W5D5 |
14U |
530*508*710 |
CYWL-11-16W5D5 |
16U |
530*508*780 |
CYWL-11-20W5D7 |
20U |
530*710*970 |
CYWL-11-28W5D7 |
28U |
530*710*1330 |
Description | RAL9004 | black | |
RAL7035 | gray | ||
RAL9010 | white |
Xiangshan Chaoyu Machinery Manufacturing Co., Ltd is China custom Welded Wall Mount Cabinet With Acrylic Front Door suppliers and OEM/ODM Welded Wall Mount Cabinet With Acrylic Front Door company. It is located in Xiangshan County, a beautiful peninsula in Zhejiang Province, the transportation is very convenient.
The company occupies a land area of 10000 square meters and has advanced production equipment such as hydraulic swing beam shears, hydraulic press brakes, laser cutting machine and others. The company has developed a specialized cabinet manufacturing base combining new product development, automatic production lines and powerful sales network.
The company has strong technical force and complete machinery. The quality of finished products and after-sales service is managed in compliance with ISO9000 international standard, quality service and unified service are provided for clients. At the same time. The company attaches importance to technical innovation and new product development. As a result, the product quality has continued to improve and products come with a wider range of specification.
The company shall follow its business philosophy of good quality, favorable price and attentive service. Here the whole company staff would like to extend their heartfelt thanks to all customers and others who have cared for and supported us over the years. We sincerely invite you to visit our company and give advice on our business.
On weekdays, we will reply to you within 12 hours after receiving the inquiry.
Manufacturers provide direct supply, provide preferential prices, high-quality and fast delivery, and provide high-quality service.
We mainly produce network cabinet, server cabinet, rack and cabinet accessories.
Yes, we have a strong R & D team, which can develop and produce products according to the drawings or samples provided by customers.
Do you have detailed questions or suggestions? We will respond to it within 24 hours from the date of receipt.
